- Technical Parameters
Technical parameters E01C 940-04 MODEL PARAMETER TABLE Unit Data Setting range 1:X 1:15666 Maximum flow rate in standard mode L/H 940 Maximum flow rate in 50% Viscosity mode L/H 470 Maximum flow rate in 25% Viscosity mode L/H 235 Minimum flow L/H 0.06 Maximum Output pressure Bar 4 Accuracy of repeatability1 %FS ±1 Max. suction lift during operation2 m 3 Min.pressure difference between inlet and outlet Bar 1 Max. Viscosity in 25% slow mode cP 1500 Max. Viscosity in 50% slow mode cP 800 Max. viscosity in standard mode cP 100 Type of inlet and outlet pipe / PVC pipe Inlet and outlet pipe specifications mm DN25 Minimum/Maximum liquid temperature for conveyance ℃ 0-45 Minimum/Maximum operating environment temperature ℃ 0-45 Max. altitude above sea level M 3200 Rated power W 400 - Performance and Configuration Notes

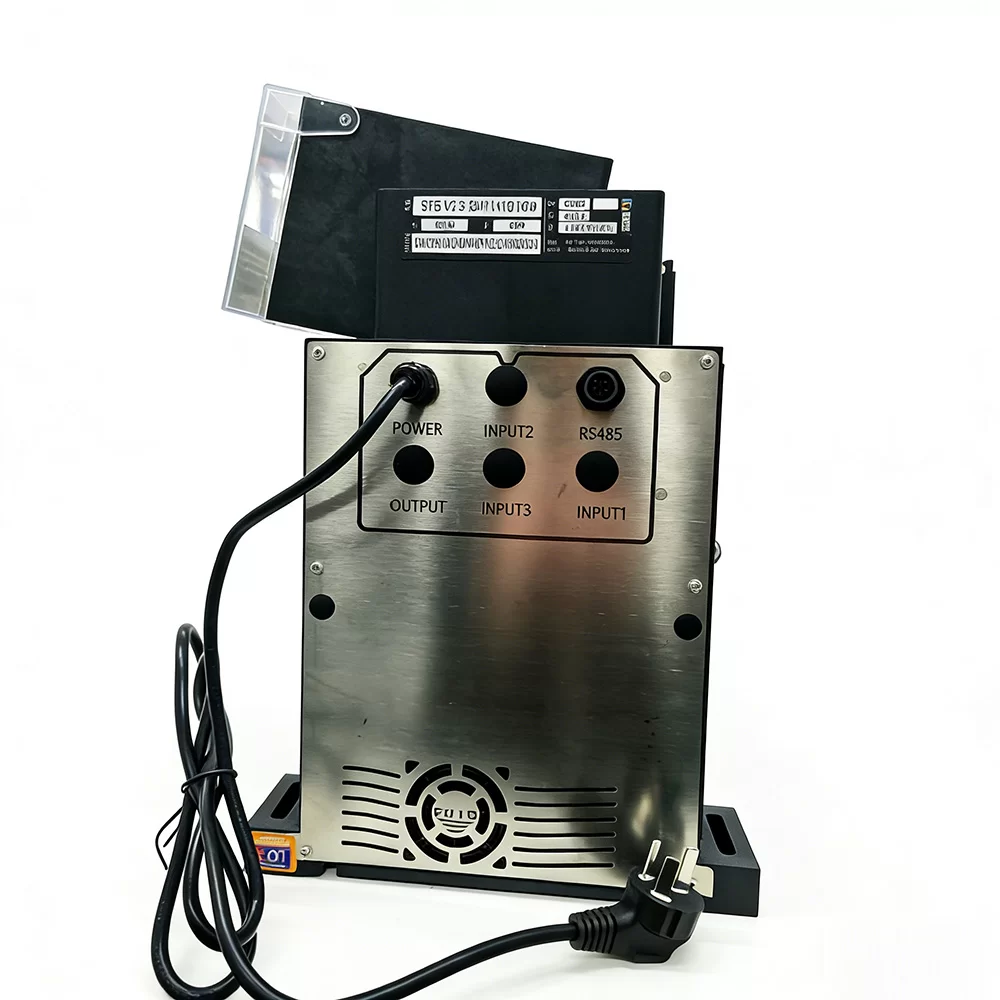

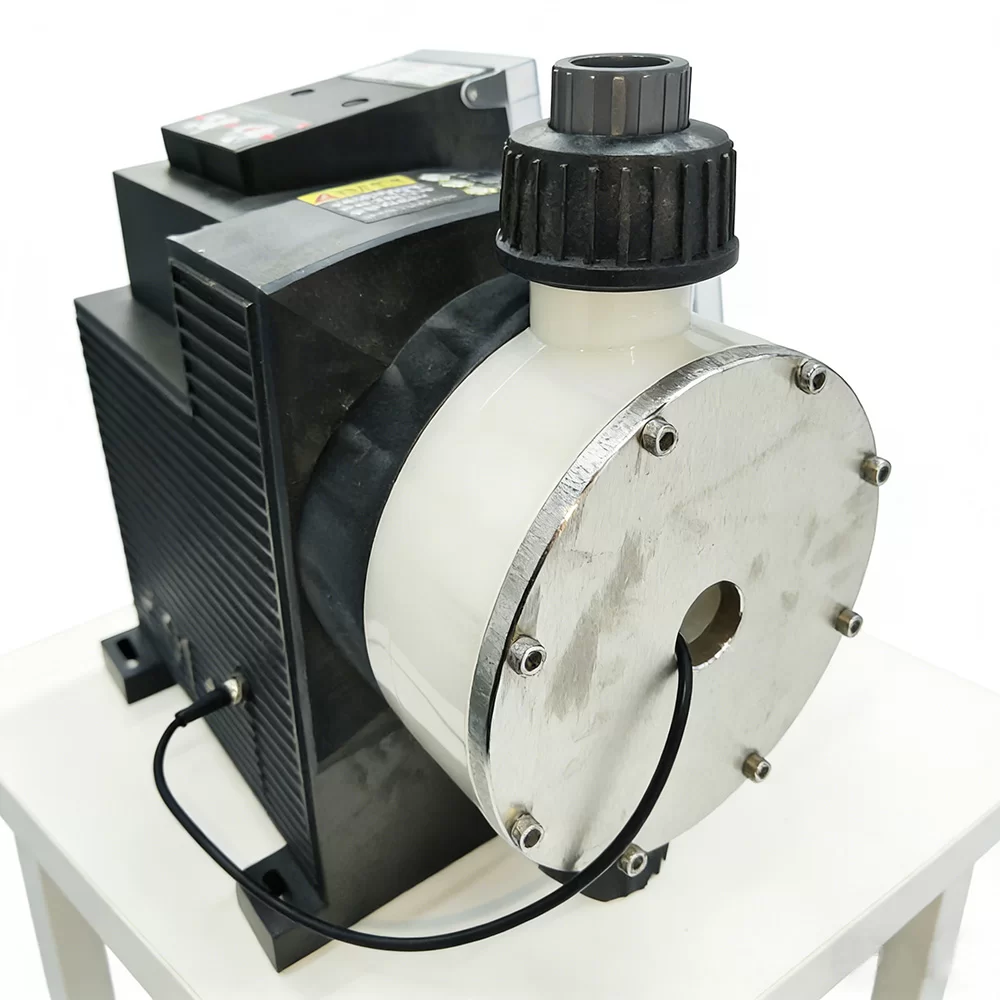

SPECIFIED DATA Flow Adjustment Method Panel manual control，modbus，4~20mA，0-10V，RS485 communication Control principle High precision servo motor drives，advanced algorithm Diaphragm monitoring With pressure (YLC)sensor Diaphragm rupture real-time alarm MOTOR type Servo motor Supply Voltage 110-240V/50Hz Performance IP65 Function Manual mode，CONC Mode，Pulse mode，Current control，External Start/Stop，Slow mode and others Interface version Standard version 1 (with RS485 communication and 4-20mA interface)/customized Spare parts end materials: Pump head PVDF（Standard） Diaphragm(s) PTFE Check valve PVC Valve balls Zirconium Beads（standard） Gasket FPM Fluorine Rubber（Viton standard）/Optional OTFE，EPDM… Pump body material Right side ( interface area ) : Stainless steel YLC（pressure）sensor Continuously monitor pipeline pressure blockages and leaks,，insufficient chemical supply，diaphragm states
-
